IP Video Encoder Module Solutions for OEM

Why leading companies around the world choose IONODES

Let us help you get to market fast with our full line of IoT video encoder modules designed to be easily integrated into virtually any product or solution.  Get to market faster, leverage our expertise in high-end video processing, reduce your overhead and focus on the things that make you unique.

Multi-Purpose IoT Video Encoder Modules

Full Turnkey

Get all the IoT video tech you need to get to market fast

Systems Control

Support of HD zoom blocks, PTZ controllers, thermal imagers and more

OEM-Friendly

OEM-branded applications including web interface and command & control API’s

High Quality Video

Supports best available compression at resolutions up to 4K

Reliable Software Stack

Field and time-tested IoT software stack including Onvif, RTSP, ION API, and more

VISCA Protocol

Fully compatible with SONY’s VISCA protocol for direct control of practically any zoom block

Innovative Features

Our platforms go beyond the basics, offering many IoT features as well as edge-AI functions

Our IoT Modules

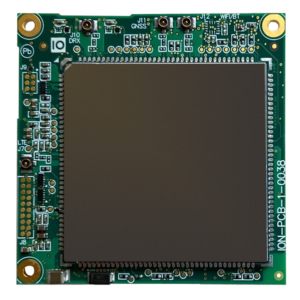

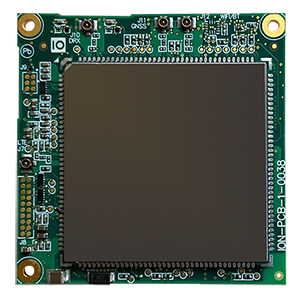

ATOMAS-IOT-DUAL

Multi-Camera IoT Video Encoder Module

The ATOMAS-IOT-DUAL is a feature-rich IP video encoder module with IoT capabilities, suited for a wide range of camera designs. The compact form factor of the ATOMAS-IOT-DUAL makes it especially ideal for integration to dual camera systems combining LVDS zoom blocks, MIPI sensor modules and thermal blocks.

Get a quote
  • Three video input - MIPI, LVDS, Digital
  • Two simultaneous video inputs / cameras
  • Glueless connection to LVDS zoom blocks
  • H.265 (HEVC) / H.264 / MJPEG video compression
    • Resolutions up to 4K30
    • Local recording to microSD card
    • Onvif Profile G,S,T
    • Optional IoT features: LTE, Wi-Fi, GPS, Bluetooth
Related Documents

Note: For access to technical documentation and user manuals, please contact sales@ionodes.com to obtain customer portal access.

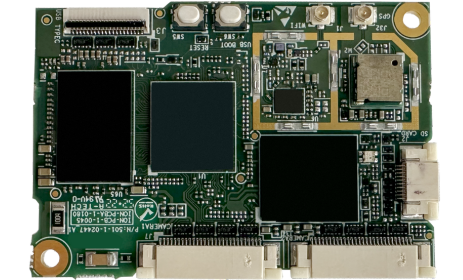

ATOMAS-IOT-MICRO

Dual Camera 4K IoT Video Encoder Module

The ATOMAS-IOT-MICRO module is a feature-rich IoT video encoder designed for a wide range of OEM camera designs. The unique miniaturized form factor of the ATOMAS-IOT-MICRO makes it especially ideal for integrations that require high quality video and IoT features in a compact form factor.

Get a quote
  • Two 4-Lane MIPI CSI video inputs
  • Simultaneous encoding / streaming of two cameras
  • Supports up to 4K30 resolution
  • H.265 (HEVC) / H.264 / MJPEG video compression
    • Local recording to microSD card
    • Onvif Profiles G,S,T
    • Powered by Qualcomm Octa-core SoC
    • Optional IoT features: Wi-Fi, Bluetooth, GPS
Related Documents

Note: For access to technical documentation and user manuals, please contact sales@ionodes.com to obtain customer portal access.

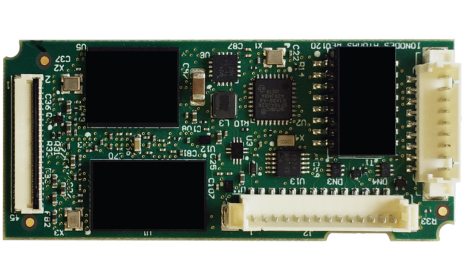

ATOMAS-MICRO-CNCT

Full HD 1080p60 H.264 IP Encoder Module

The ATOMAS Micro encoder module is a feature-rich IP video encoder designed for a wide range of OEM camera designs. The unique miniaturized form factor of the ATOMAS Micro makes it especially well suited for integration to small HD camera modules.

Get a quote
  • HD parallel video interface
  • High profile H.264 video compression
  • Supports input resolutions at up to 12 megapixels
  • IP video streaming at up to 1080p60
  • Local recording to SD card
  • Onvif Profile S compliant
    • Web-based administrative user interface
    • 5.5VDC to 14VDC power input range
    • Optional PoE power input module
    • Low latency IP video streaming
    • On-board RTC and hardware watchdog
Related Documents

Note: For access to technical documentation and user manuals, please contact sales@ionodes.com to obtain customer portal access.

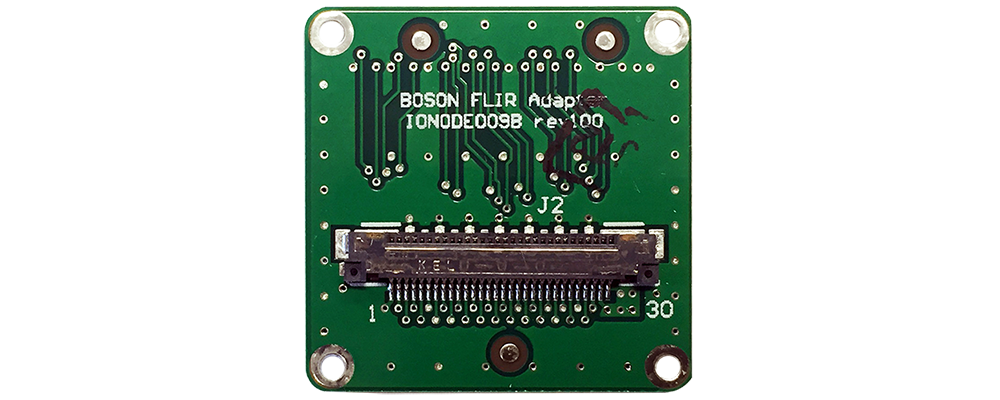

ATOMAS-MINI-BOSON-ADAPT

The ATOMAS-MINI-BOSON-ADAPT breakout board is designed to attach directly to the back of a FLIR Boson 320 or FLIR Boson 640 (60Hz) camera, allowing you to use these thermal cameras as your secondary camera on an ATOMAS-IOT-DUAL.

  • -Use with FLIR Boson 320 / 640
  • -Provides full digital video
  • -Allows for sensor commands

Specification sheet

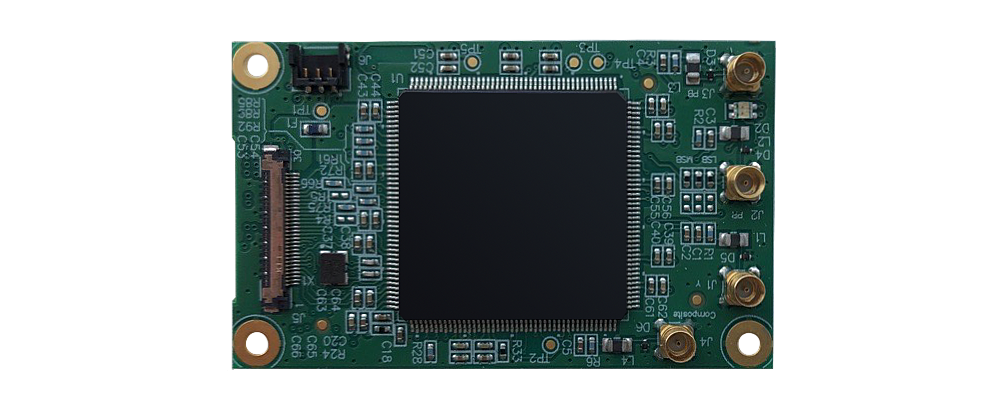

ATOMAS-IOT-DUAL-HDCOMP-ADAPT

The ATOMAS-IOT-DUAL HD component breakout board is an add-on board designed for use with the ATOMAS-IOT-DUAL line of encoders. This optional module brings support for analog SD composite video (PAL/NTSC), as well as analog HD component (Y/Pb/Pr) to your ATOMAS design.

  • -Support for analog SD composite
  • -Support for analog HD component
  • -Connects to ATOMAS-IOT-DUAL
  • -Miniaturized form factor

Specification sheet

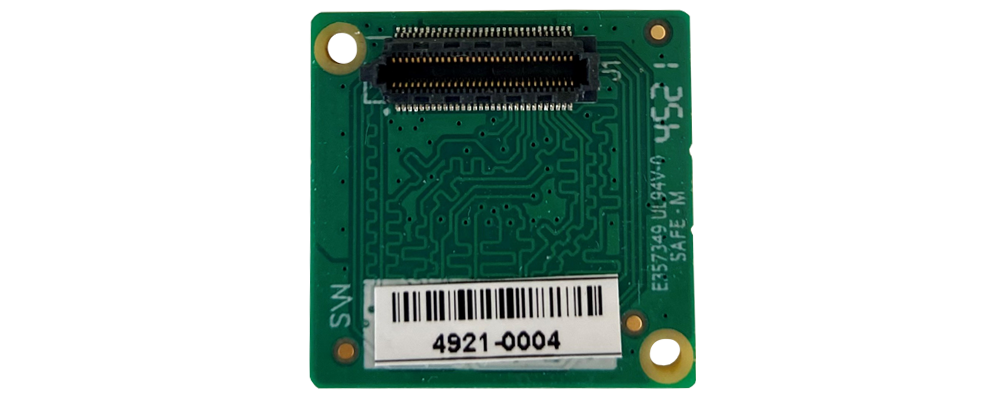

ATOMAS-MINI-TENUM-ADAPT

The ATOMAS-MINI-TENUM-ADAPT breakout board is designed to attach directly to the back of a DRS Tenum 640 or Tenum 1280 camera, allowing you to use this thermal camera as your secondary camera on an ATOMAS-IOT-DUAL.

  • -Use with DRS Tenum 640
  • -Provides full digital video
  • -Allows for sensor commands

Specification sheet

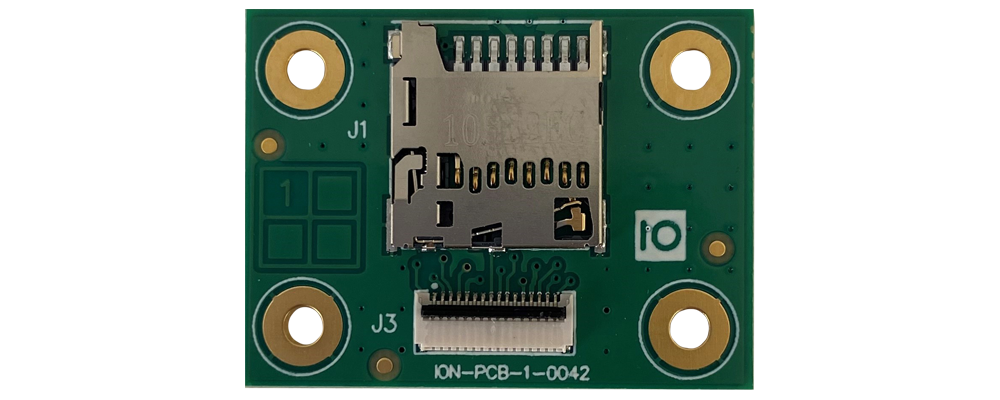

ATOMAS-IOT-DUAL-SDSIM-ADAPT

The ATOMAS-IOT-DUAL-SDSIM-ADAPT breakout board is a micro SD/SIM add-on board designed for use with the ATOMAS-IOT-DUAL line of encoders. This optional module brings edge recording and LTE SIM card support to your ATOMAS design.

  • -Support for micro SD memory card
  • -Support for LTE SIM card
  • -Connects to ATOMAS-IOT-DUAL
  • -Miniaturized form factor

Specification sheet

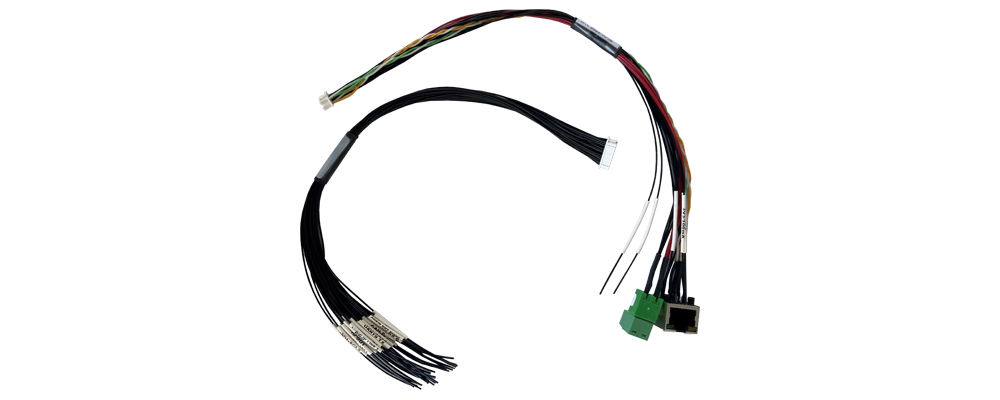

ATOMAS-IOT-DUAL-ACC-KIT

The ATOMAS-IOT-DUAL-ACC-KIT is the ideal accessory kit to get you started with your ATOMAS-IOT-DUAL design. It includes ready to use cables for network, power, audio, serial communications and I/O.

  • -Use w/ any ATOMAS-IOT-DUAL
  • -Provides all basic cable assemblies

ATOMAS-IOT-MICRO-ACC KIT

The ATOMAS-IOT-MICRO-ACC KIT is the ideal accessory kit to get you started with your ATOMAS-IOT-MICRO design. It includes ready to use cables for network, power, serial communications and I/O.

Target Applications

Wide variety of applications for our ATOMAS IP video encoder modules.

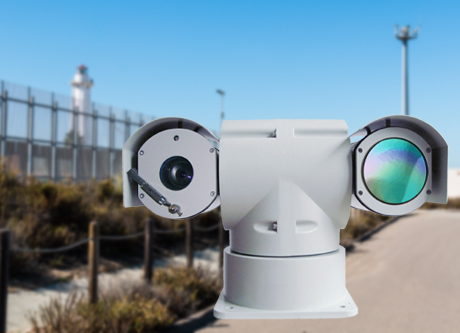

Thermal / Visible Camera Systems

Inspection Camera Systems

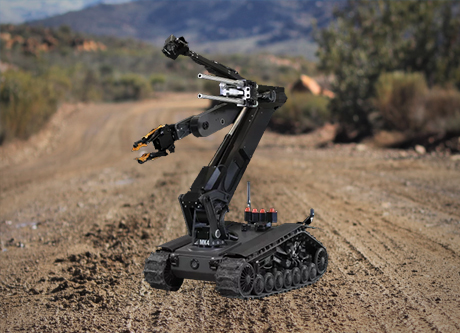

Robotics Camera Systems

Unmanned Vehicle Cameras
